Description

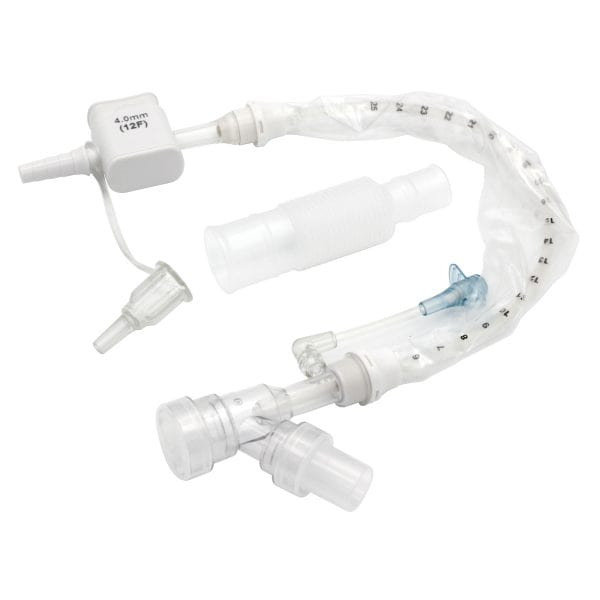

With the unique isolation valve, 72hr closed suction system features safe and simple access for mechanical ventilated patients for 72 hours of continuous use.
Once the airway is clear, withdraw the catheter completely into the plastic sheath. A black mark on the catheter indicates full withdrawal.
ISO color coded for instant recognition of catheter sizes.
Smooth tubing surface and atraumatic rounded catheter tip for minimal tracheal wall injury.
24 Hour Adult
Endotrachael 540mm
| Item# | Description |
| VEN46001000A | 10Fr |
| VEN46001000AM | 10Fr, MDI Port |
| VEN46001200 | 12Fr |
| VEN46001200M | 12Fr, MDI Port |
| VEN46001400 | 14Fr |
| VEN46001400M | 14Fr, MDI Port |
| VEN46001600 | 16Fr |
| VEN46001600M | 16Fr, MDI Port |
Tracheostomy 305mm
| Item# | Description |
| VEN46011000A | 10Fr |
| VEN46011000AM | 10Fr, MDI Port |
| VEN46011200 | 12Fr |
| VEN46011200M | 12Fr, MDI Port |
| VEN46011400 | 14Fr |
| VEN46011400M | 14Fr, MDI Port |
| VEN46011600 | 16Fr |
| VEN46011600M | 16Fr, MDI Port |
72 Hour Adult
Endotrachael 540mm
| Item# | Description |
| VEN56051000A | 10Fr |
| VEN56051000AM | 10Fr, MDI Port |
| VEN56051200 | 12Fr |
| VEN56051200M | 12Fr, MDI Port |
| VEN56051400 | 14Fr |
| VEN56051400M | 14Fr, MDI Port |
| VEN56051600 | 16Fr |
| VEN56051600M | 16Fr, MDI Port |
Tracheostomy 305mm
| Item# | Description |
| VEN56061000A | 10Fr |
| VEN56061000AM | 10Fr, MDI Port |
| VEN56061200 | 12Fr |
| VEN56061200M | 12Fr, MDI Port |
| VEN56061400 | 14Fr |
| VEN56061400M | 14Fr, MDI Port |
| VEN56061600 | 16Fr |
| VEN56061600M | 16Fr, MDI Port |
Neonatal/Pediatric
With Y-Adapter
| Item# | Description |
| VEN66000500 | 305mm, 5Fr |
| VEN66000600 | 305mm, 6Fr |
| VEN66000700 | 305mm, 7Fr |
| VEN66000800 | 305mm, 8Fr |
| VEN66001000 | 405mm, 10Fr |
| VEN66000500M | 305mm, 5Fr, MDI Port |
| VEN66000600M | 305mm, 6Fr, MDI Port |
| VEN66000700M | 305mm, 7Fr, MDI Port |
| VEN66000800M | 305mm, 8Fr, MDI Port |
| VEN66001000M | 405mm, 10Fr, MDI Port |
Standard Closed Suction System for Adult VEN4 Series IFU
Standard 72hr Closed Suction System for Adult VEN5 Series IFU
Standard Closed Suction System for Neonatal/Pediatric VEN6 Series IFU
