Suction Catheters
We’re now manufacturing improved, latex-free and phthalate-free, sterile open suction catheters. Catheters are available in directional or chimney valves and whistle or DeLee tips. Catheters are securely packaged and easily accessible thanks to a convenient peel pouch.
- Latex-free
- Phthalate-free
- Sterile peel pouch
Open Suction Catheter Kits with Cup
Our new and improved sterile catheter care kits include a cup and gloves.
- Latex-free
- Phthalate-free
- Sterile peel pouch
Sleeved Coiled Open Suction Catheter Kits
with Cup

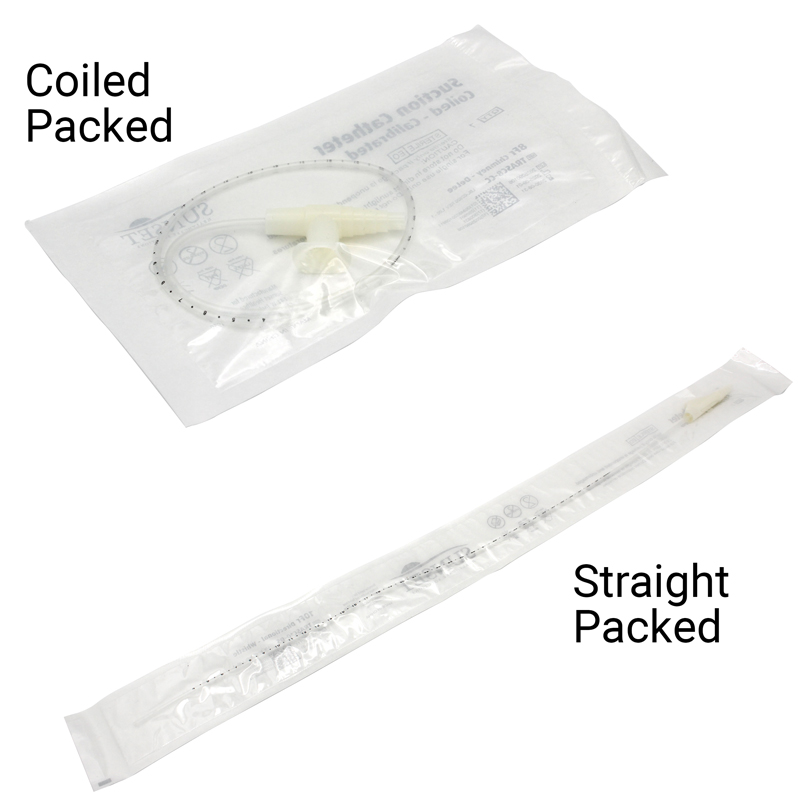

Choose coiled packs, sizes 8Fr to 14Fr, and catheters for adult or pediatric patients.
- Latex-free
- Phthalate-free
- Sterile peel pouch
Closed Suction Catheters
24 Hour Adult | |
Endotrachael 540mm | |
| Item# | Description |
| VEN46001000A | 10Fr, Flex Tube |
| VEN46001000AM | 10Fr, MDI Port |
| VEN46001200 | 12Fr, Flex Tube |
| VEN46001200M | 12Fr, MDI Port |
| VEN46001400 | 14Fr, Flex Tube |
| VEN46001400M | 14Fr, MDI Port |
| VEN46001600 | 16Fr |
| VEN46001600M | 16Fr, MDI Port |
Tracheostomy – 305mm | |
| Item# | Description |
| VEN46011000A | 10Fr |
| VEN46011000AM | 10Fr, MDI Port |
| VEN46011200 | 12Fr, Flex Tube |
| VEN46011200M | 12Fr, MDI Port |
| VEN46011400 | 14Fr, Flex Tube |
| VEN46011400M | 14Fr, MDI Port, Flex Tube |
| VEN46011600 | 16Fr |
| VEN46011600M | 16Fr, MDI Port |
72 Hour Adult | |
Endotrachael 540mm | |
| Item# | Description |
| VEN56051000A | 10Fr |
| VEN56051000AM | 10Fr, MDI Port |
| VEN56051200 | 12Fr |
| VEN56051200M | 12Fr, MDI Port |
| VEN56051400 | 14Fr |
| VEN56051400M | 14Fr, MDI Port |
| VEN56051600 | 16Fr |
| VEN56051600M | 16Fr, MDI Port |
Tracheostomy 305mm | |
| Item# | Description |
| VEN56061000A | 10Fr, Flex Tube |
| VEN56061000AM | 10Fr, MDI Port |
| VEN56061200 | 12Fr, Flex Tube |
| VEN56061200M | 12Fr, MDI Port |
| VEN56061400 | 14Fr, Flex Tube |
| VEN56061400M | 14Fr, MDI Port |
| VEN56061600 | 16Fr |
| VEN56061600M | 16Fr, MDI Port |
Neonatal / Pediatric | |
With DSE Connection | |
| Item# | Description |
| VENCSS6-305 | 6Fr, 305mm |
| VENCSS8-203 | 8Fr, 203mm |
| VENCSS8-355 | 8Fr, 355mm |
| VENCSS10-203 | 10Fr, 203mm |
| VENCSS10-405 | 10Fr, 405mm |
Single Limb Ventilator Circuits
Replacement circuits for discontinued models
Sunset’s expanding selection of ventilator circuit replacements has you covered. Simply match your discontinued models to our replacement options for great value and all the same benefits. Kits available with vent circuit designs comparable to discontinued Respironics models.
Heated
For use with F&P MR850
Passive Circuits
Adult
VC1114
10/case
22mm circuit with
optional connector
OEM# RT114
Adult with Port and Connector
VC1003
10/case
Includes:
- 22mm circuit
- Swivel exhalation port
- Optional connector
OEM#
1076046, 1073227, 1073235
Pediatric with Port and Connectors
VC1003P
10/case
Includes:
- 15mm circuit
- Swivel exhalation port
- 15mm/22mm connector
- 22mm/22mm connector
OEM#
1073225, 1073234
Active Circuits
Adult with Adapter and Connector
VC1002
30/case
Includes:
- 22mm circuit
- Active exhalation valve adapter
- Optional connector
OEM#
1073222, 1073231
Pediatric with Adapter and Connector
VC1002P
30/case
Includes:
- 15mm circuit
- Active exhalation valve adapter
- 15mm/22mm connector
OEM#
1073221, 1073230
Non-Heated Single Limb Ventilator Circuits
Active
Adult
VC1001
30/case
OEM#
1073223, 1073232
Pediatric
VC1001P
30/case
OEM#
1073220, 1073229
Passive
Adult
VC1004
30/case
OEM#
1069443, 1069444
Pediatric
VC1004P
30/case
OEM#
1073224, 1073233
Adult with Swivel Exhalation Port
VC1000
Each
OEM#
1073228, 1073236
Adult with Bacteria Filter
VC1006
Each
OEM#
007936
Adult with Fixed Exhalation Port
VC1100
Each
OEM#
1069467, 1069468
Adult with Bacteria Filter and Fixed Exhalation Port
VC1007
Each
OEM#
007615
Passive Circuit with Exhalation Port and Bacterial/Viral Filter
Adult
VC1005
Each
Includes 19mm tube with 22mm cuffs
OEM#
1147378, 1132340, 7615
Pediatric
VC1005P
Each
Includes 15mm tube
with 22mm cuffs
OEM#
1132339
Tracheostomy Heat Moisture Exchangers
 |
 |
 |
|
T-HMERES027 |
T-HME with O2 PortRES027OP |
HME with O2 PortRES027UOP |
|
| TV Range (mL) | 150-1250 | 150-1250 | 50-1000 |
| Moisture Output (mg H2O/L) | 36.4 at VT = 500 ml | 32 mg/L | 13.2 mg/L |
| Weight (g) | 6.6 | 7.4 | 5 |
| Resistance (cm H2O) | 0.2 @ 30 LPM | 0.2 @ 30 LPM | 0.4 @ 30 LPM; 0.9 @ 60 LPM; 1.5 @ 90 LPM |
| Dead Space (mL) | 15 | 7 | 17 |
| Connection | 15F | 15F 5.5mm O2 Port | 15F |
Inline Heat Moisture Exchangers
 |
 |
 |
 |
|

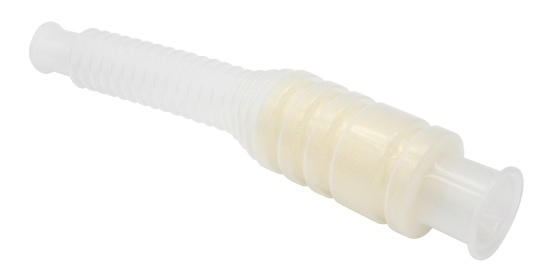

Flex HME — FoamRES027FLEX |
Inline Small Volume HME with Gas Sampling PortRES027IL |
Inline Large Volume HME with Gas Sampling PortRES027ILLV |
Inline HME — NeonatalRES027NE |
|
| TV Range (mL) | 250-1500 | 70-600 | 150-1500 | 5-50 |
| Moisture Output (mg H2O/L) | 30 mg/L | 34.5 at VT = 250 ml 32.5 at VT = 500 ml | 37.7 at VT = 250 ml 35.5 at VT = 500 ml 33.5 at VT = 1000 ml | 32.8 at VT = 250 ml |
| Weight (g) | 15.5 | 10 | 15 | 1.9 |
| Resistance (cm H2O) | 0.5 @ 30 LPM 1.4 @ 60 LPM | 0.8 @ 30 LPM 2.1 @ 60 LPM | 1.0 @ 30 LPM 2.6 @ 60 LPM | 0.8 @ 15 LPM 1.7 @ 30 LPM |
| Dead Space (mL) | 90 | 21 | 34 | 2.2 |
| Connection | 22F, 15F | 22M/15F-15M | 22M/15F-15M | 15M,15F |
