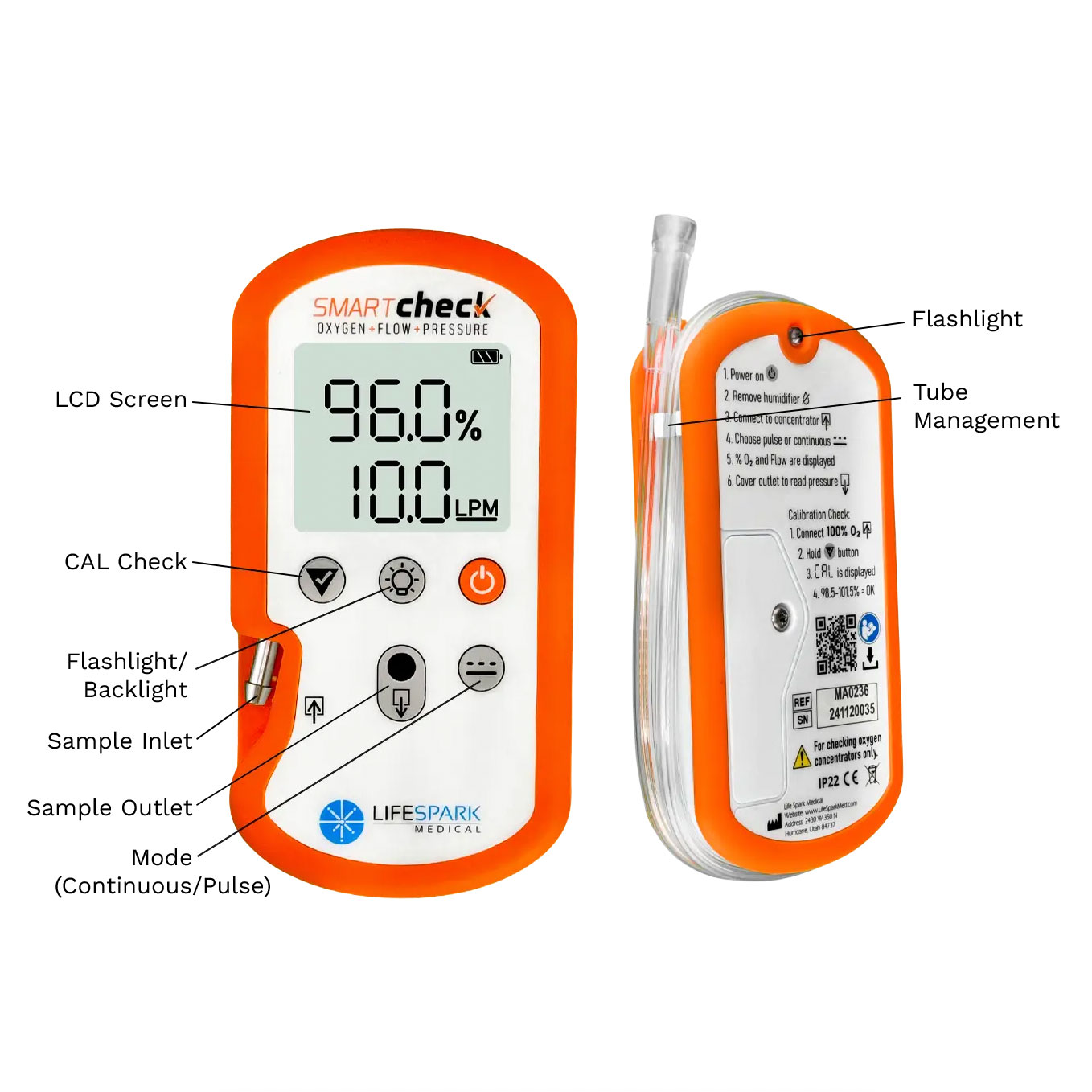

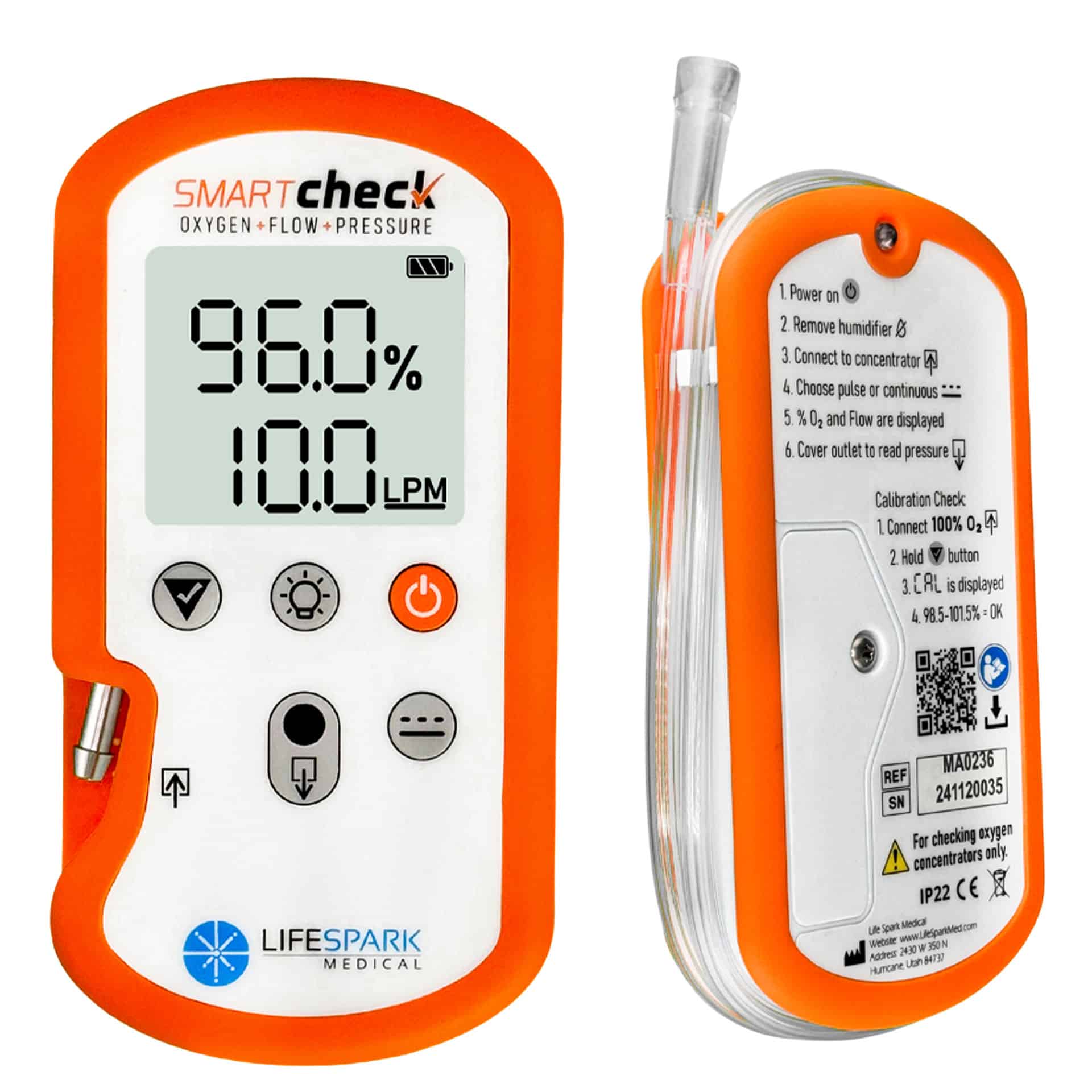

RES7003 Smart Check Analyzer

The ultimate oxygen + flow + pressure analyzer.

Portable, handheld oxygen analyzer designed specifically for testing and maintaining oxygen concentrators.

SKU: RES7003 Categories: ,

Description

The Smart Check is an all-in-one oxygen analyzer for testing continuous and pulse (POC) concentrators. Measure Oxygen, flow, pressure and pulse volume with a single device. Use the Smart Check to also test CPAP, BIPAP and nebulizers.

The Smart Check is the only device that also offers a built-in flashlight, backlight, and integrated tube management system.

With its fast temperature response, SmartCheck quickly adapts to temperature changes, ensuring accurate results in less time.

Offering all these features at a very competitive price, SmartCheck delivers exceptional performance at an incredible value.

Comparison

Smart Check UltraMax O2 Pro2 Check Elite
Measure Oxygen & Flow
Test Pressure
Quick Touch Pressure Check X
Calibrated for Life X
Test Pulse Concentrators X X
Test CPAP & Nebulizer X X
Flashlight X X
Backlight X X
Tube Management X X
Fast Environmental Response X X
Cost $ $$$ $$

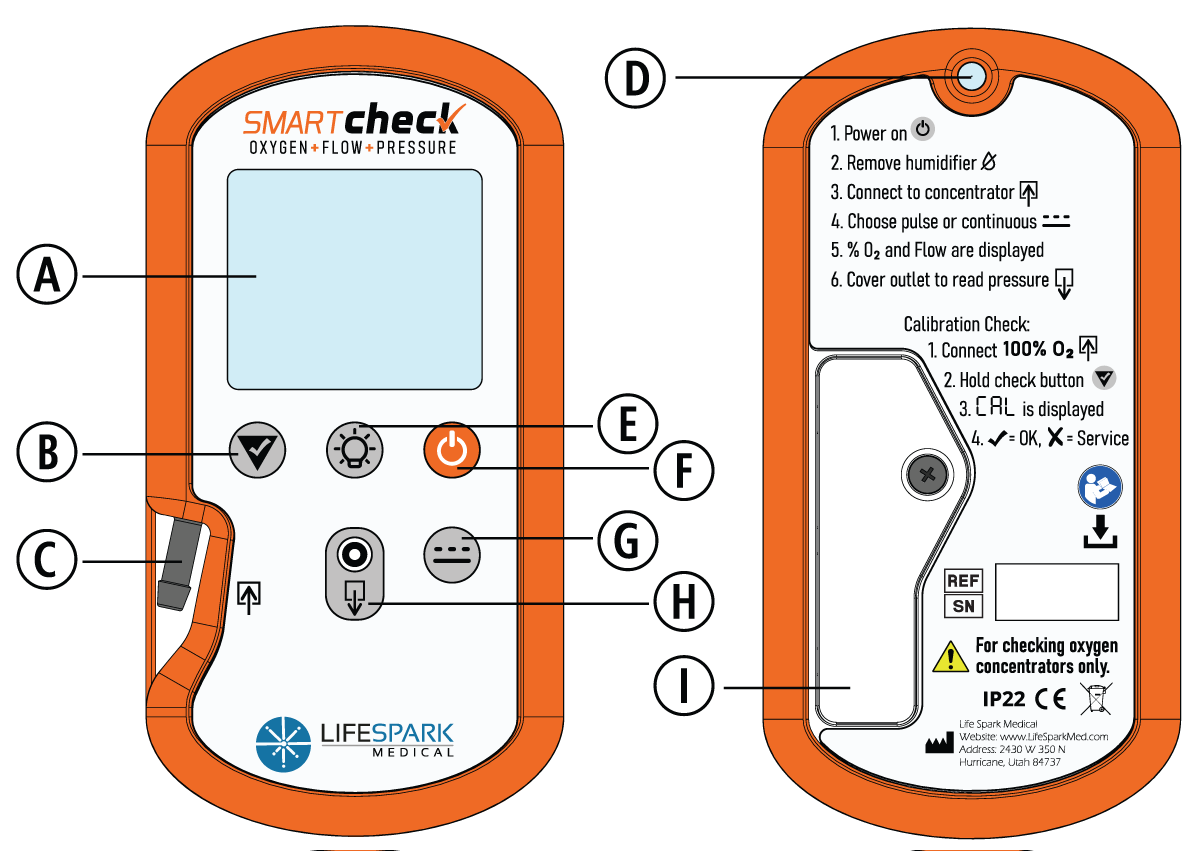

Components

Smart Check components

A. LED Display
B. Calibration Check Button
C. Sample Inlet
D. Flashlight
E. Flashlight On/Off Button
F. Power On/Off Button
G. Mode Button
H. Sample Outlet
I. Battery Cover

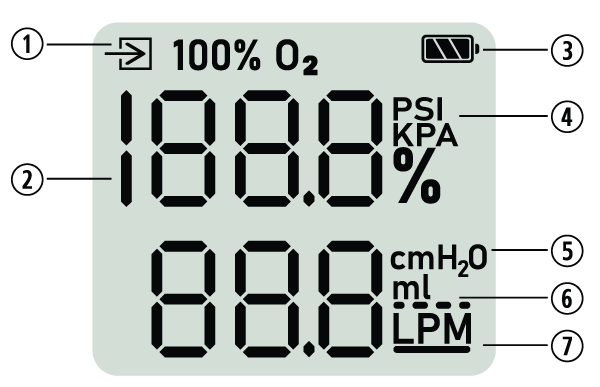

Display

RES7003 Display

1. Feed 100% O2 Indicator
2. O2 Percent Display (%)
3. Battery Indicator
4. Pressure Unit (PSI or KPA)
5. Displaying Low Range Pressure (cmH2O)
6. Displaying Pulse Volume (ml)
7. Displaying Continuous Flow Rate (LPM)

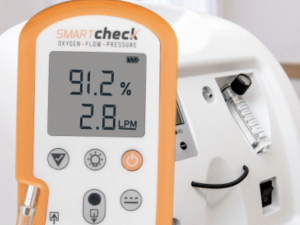

Concentrator O2

Smart Check directly measures the oxygen concentration (O2%) delivered by the concentrator. Quickly read O2 for any concentrator (continuous or POC). Just connect the sample line to the concentrator, power it on, and read O2 and flow details.

Photo of Smart Check analyzer being used to check a concentrator

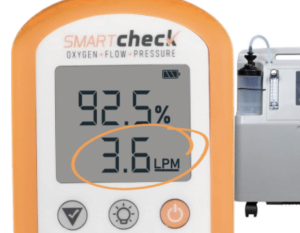

Flow

Quickly verify the flow (LPM) on continuous oxygen concentrators.

Photo of Smart Check being used to check oxygen flow

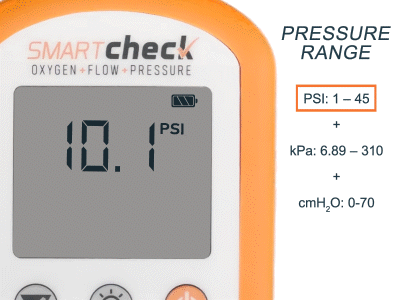

Pressure

Measure device output pressure in PSI or kPa. Smart Check can be configured to show either PSI or kPa, depending on your preference. Pressure is also given in cmH2O when it is less than 70 cmH2O.

Smart Check pressure demonstration

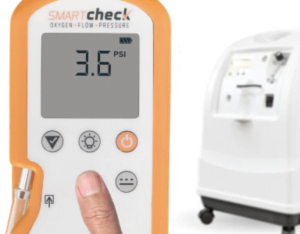

Quick Touch Pressure Check

Measuring pressure is as easy as placing your thumb on the sample outlet. No Hassle Pressure Readings. Just place your thumb on the exhaust port and the Smart Check will switch over to reading pressure. The exhaust port is conveniently located for left- and right-hand use.

Photograph of Smart Check with a person's finger pressing a check button on the unit

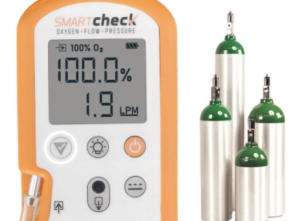

Calibrated for Life

Smart Check is always ready to use and does not require ongoing calibration. The Smart Check is calibrated for life and does not require ongoing calibration. The calibration can be verified by using the Cal Check feature.

  1. Connect the Smart Check to 100% Pure O2 (USP bottled oxygen)
  2. Hold down the Cal Check button
  3. Verify readings are in spec.

Photograph of Smart Check with oxygen tanks

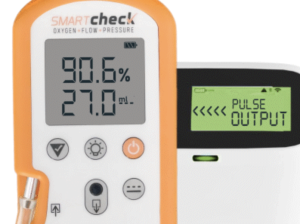

Test Pulse Concentrators (POC)

Stop ignoring your portable oxygen concentrators (POCs). The Smart Check can test pulse concentrators – Oxygen and pulse volume (ml) – ensuring your portable concentrators are ready for use. Smart Check is the ONLY oxygen analyzer that will test pulse volumes and O2 concentrations for portable oxygen concentrators. Connect the Smart Check to your portable concentrator and press the Pulse Mode button. The Smart Check will display the pulse volume in milliliters (ml) and the peak oxygen concentration for each pulse.

Photo of Smart Check next to a pulse concentrator

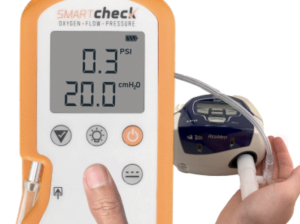

Test CPAP + Nebulizer

Toss out your other pressure meters and test ALL your equipment with the Smart Check including CPAP, BIPAP and nebulizers. No more looking for lost or misplaced pressure gauges. Use the Smart Check to test all your devices. Smart Check reads as low as 3 cmH2O and automatically shows pressures < 1 psi in cmH2O so you can accurately test CPAP and BiPAP machines. And don’t forget to test your nebulizers while you are at it.

Photo of Smart Check being used to test a CPAP machine

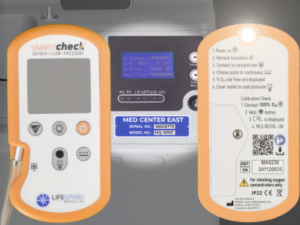

Flashlight

Use the integrated flashlight to easily find and read equipment tags or other equipment information in the darkest rooms. Leave your phone in your pocket. Use the SmartCheck to help see details in dimly lit rooms. Flashlight automatically turns off after 1 minute, or when the analyzer is powered on, to conserve battery life.

Photo of Smart Check casting flashlight beam onto an oxygen concentrator in a darkened room

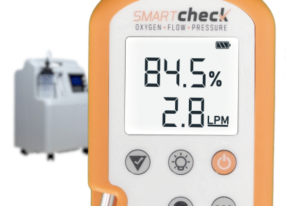

Backlight

The built-in backlight allows for convenient checking in any room and any light. Crystal clear readings – anywhere. Turn on the backlight at the press of a button. Great for dark rooms or to help reassure older patients. The backlight turns off automatically to save batteries.

Close up of Smart Check display showing the high contrast measurements with the back-lit screen

Tube Management

Protect the sample tube and keep things organized with the built-in tube management system. Smart Check is designed to keep the tube organized when not in use.

Fast Environmental Response

With extra built-in sensors, the Smart Check quickly adapts to the current room temperature to provide accurate readings – quickly. Don’t let temperature swings slow you down! Smart Check is 10X faster than leading competitors at adjusting to room temperature and providing accurate results – getting you on your way quickly.

Rugged Ergonomic Design

Smart Check is rugged with built in impact protection – while fitting comfortably in your hand. The device is over molded with flexible material providing superior impact protection. Tested to withstand common bumps and falls.



Specifications

Dimensions 75 x 147 x 27 mm (2.95 x 5.79 x 1.06 in)
Weight 0.23 kg (0.5 lbs)
Battery Life 1 year typical use (>16k read cycles)*
Battery Type 2 replaceable AA batteries
Operating Temperature 5° – 40°C (59° – 104°F)
Storage Temperature -25 – 70°C (5° – 140°F)
Auto Shutoff 2 minutes
Atmospheric Pressure 700 – 1060 hPa absolute**
Humidity 0 – 90% (non-condensing)
Pressure Units PSI, kPa, cmH2O
Sample Rate Continuous Mode: 1 Hz
Pulse Mode: 19.2 Hz
Response Time 10 seconds
Start-up Time 2.5 seconds

Concentration Mode

Range (concentrator) 20.9 – 96%
Range (pure O2) 20.9 – 100%
Accuracy ±1.5% f ull scale
Resolution 0.001

Flow Mode

Range 0 – 10 LPM volumetric
Resolution 0.1 LPM
Accuracy ±0.2 LPM

Pulse Mode

Range 3 – 200 ml
Resolution 0.1 up to 100 ml, 1 above 100 ml
Accuracy ±3 m l

Pressure Mode

Range High: 0 – 40 PSI (0 – 275 kPa)
Low: 3 – 70 cmH2O
Resolution PSI and cmH2O: 0.1
kPa: 0.1 up to 200, 1 above 200
Accuracy High: ±0.5% of reading
Low: ±0.3 cmH2O

*Read cycle estimate is without backlight use. 1 year estimate includes occasional use of the backlight/flashlight. The backlight and flashlight consume power lOx faster than the analyzer alone. Using the backlight constantly will significantly reduce battery life.
**The Smart Check automatically compensates for changes in barometric pressure to maintain accuracy.
